SHEAROGRAPHY NDT SYSTEM FOR CIRITCAL AEROSPACE COMPONENTS
5200
PORTABLE THERMAL / VACUUM SHEAROGRAPHY
Fast, Tough, Easy to Use
Easy To Use
Self Contained & Light weight
Powerful Image Processing
Real-time imagining of disbonds, delaminations, impact damage and more.
Speed
Increase in Aerospace manufacturing productivity.
VIEWS AND CONFIGURATIONS
Click to Expand Photos
SPECIFICATIONS
Technical Description

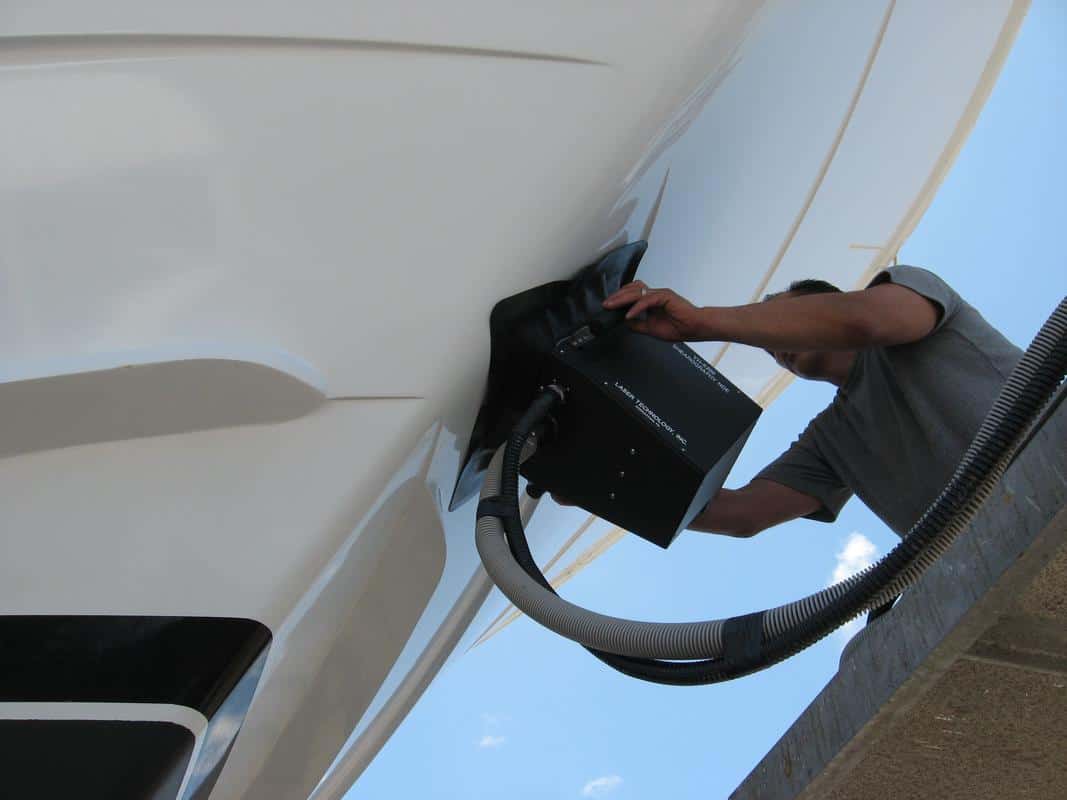

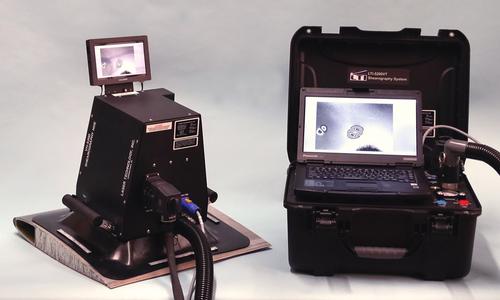

The LTI-5200 is a compact, portable vacuum shearography system designed for large area inspection of aerospace, marine and rail composite and cored sandwich structures and components. The LTI-5200 vacuum attaches in any orientation. Increasing vacuum level allows imaging and measurement of subsurface defects. The system features automatic operation with easily programmed NDE Procedure Macros, automatic exposure and image storage. The LTI-5200 includes the Inspection Head with built-in digital shearography camera and Transit Case, Vacuum Generator/Computer Case, interconnect cables and standard vacuum hose length of 20 feet / 6 meters.
Optional Equipment
- Custom adapters for curvature radii less than 28 inches
- External Hard Drive for Data Transport (40GB)
Dimensions
Inspection Head
12 x 15 x 14 in. / 30 x 38 x 35 cm
Transit Case
24 x 20 x 28 in. / 61 x 51 x 71 cm
Vacuum Generator/Controller Unit
24 x 20 x 28 in. / 61 x 51 x 71 cm
Weight
Inspection Head
16 lbs. / 7.3 kg.
Transit Case
8 lbs. / 3.6 kg.
Vacuum Gen./ Controller Unit
40 lbs. / 18.1 kg.
Specifications
Shear Camera Dimensions
8 x 9.5 inches / 20 x 24 cm
Power
100 to 240 VAC, 50/60 Hz 15 amps maximum (with TES-200)
Operation Modes
Phase Step Vacuum Shearography, Analysis and Measurement, Image Overlay
Displays (2x)
4 x 6 inches / 10.3 x 15.4 cm
1200 x 800 pixels
32bit color
16 inch / 40cm
1200 x 800 pixels
32 bit color
System Software
LTI-ShearNDT 2.9
Downloads
Patents: The LTI-5200 is manufactured in the USA under US and foreign patents 6,717,681; 5,257,088; 5,094,528. Additional patents pending. Specifications are subject to change.
Laser Shearography Certifications AIA NAS 410, ASNT SNT-TC-1A, ASTM E2581-07, EN 4179

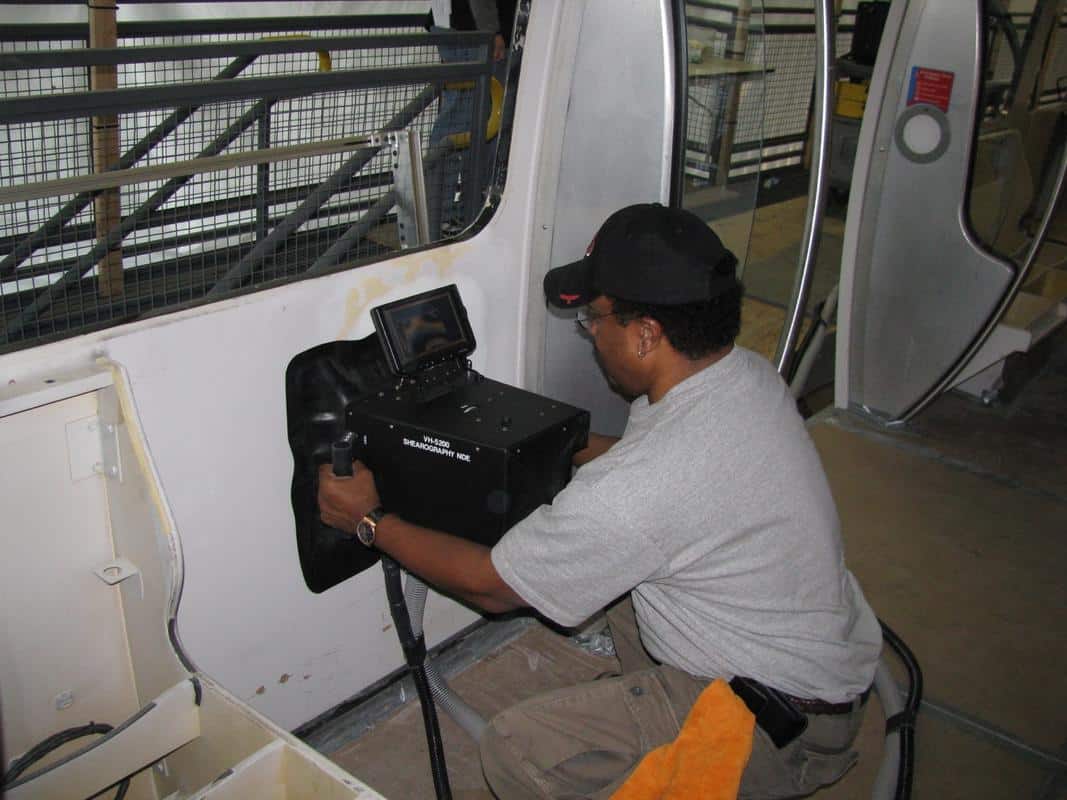

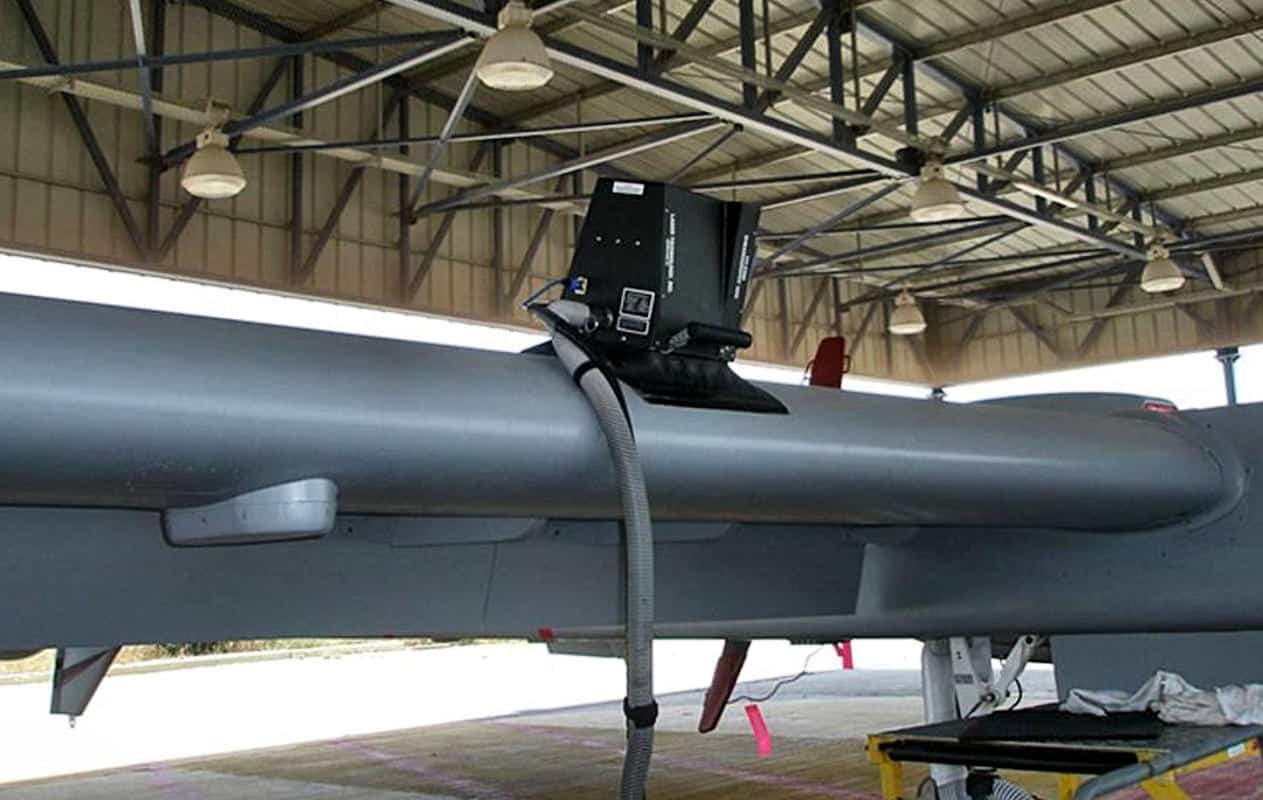

INSPECTION APPLICATIONS

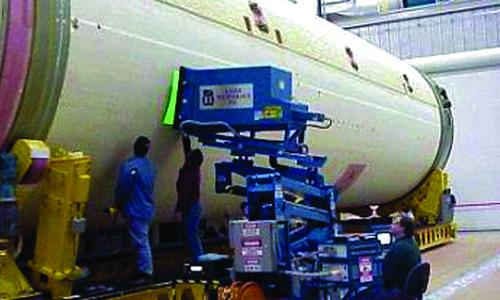

SHEAROGRAPHY IN ACTION
Shearography detects: Delaminations, Disbonds, Impact damage, Repair defects, Porosity, Cracks ,Fiber waves or wrinkles.

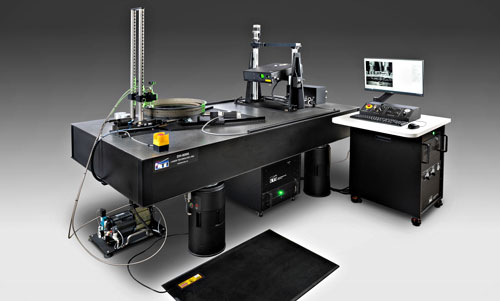

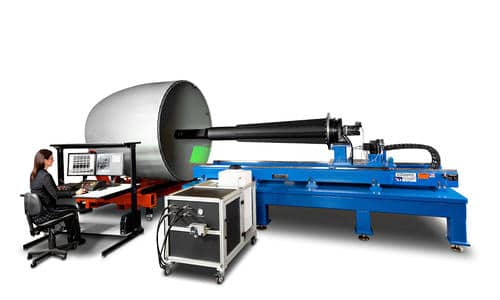

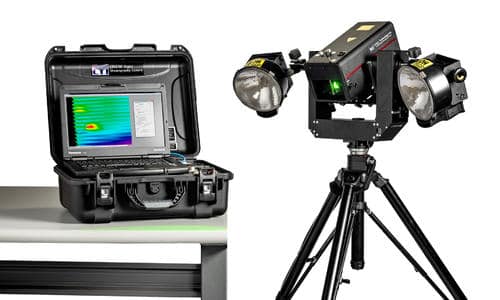

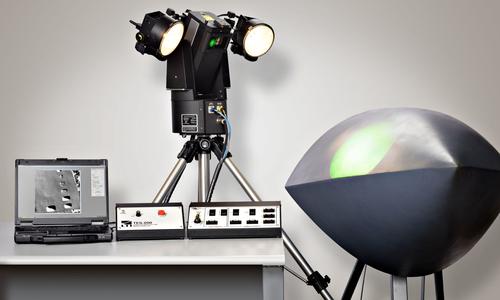

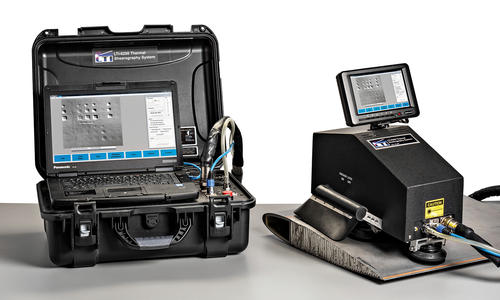

OUR FULL LINE OF SHEAROGRAPHY NDT SYSTEMS
Shearography can be applied to many applications, if we don’t have a system that works for you, we can custom build one that will.
